*Channel Height : 100mm
Details View
• Excellent Waterproof of IP68
• Maintenance 70% of Longtime Life Illumination
• Luxury Appearance by ABS Molding Injection
• Excellent Stability
• Overmolded Design by plastic injection
• Very Easy Installation
Application
Signage, Channel letter, Architecture, Indoor & Outdoor Lighting etc...
Specification
|
Color |
WHITE |
|||
|
Operating Power |
DC12V |
|||
|
LED CHIP PKG |
Samsung 5630 pkg | |||
|
Power / Current Dissipation |
1W |
|||
|
LED Spec |
120° view angle, 50 000hr rated life, made in korea |
|||
|
Luminous Flux (lm/piece) |
120 |
|||
|
Luminous Efficiency (lm/W) |
75 |
|||
|
Standard color temperature (K) |
10 000K |
|||
|

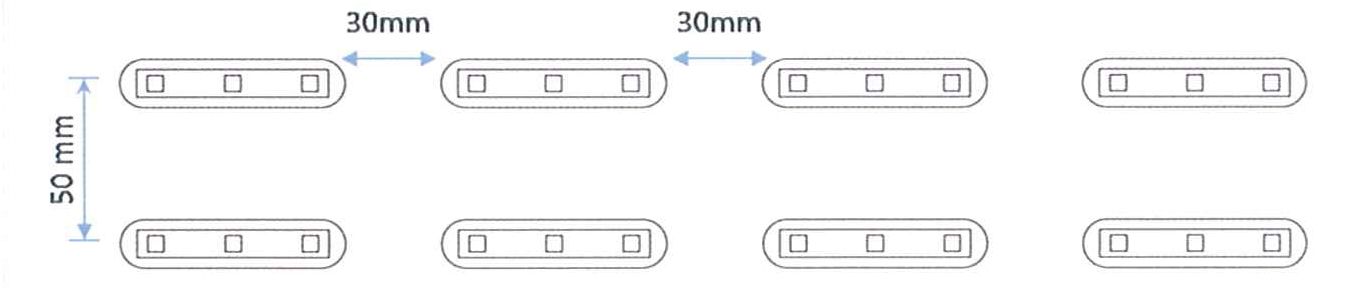

Module connection & cuttability |
wire to wire series connection, every module |
|||
|
Recommended channel height |
Min. 80mm |
|||
|
Dimension |
15mm(W)*71mm(L)*8mm(H) |
|||
|
Wire length |
90mm |
|||
|
Piece weight |
8.1g |
|||
| Operating Temperature | 20°C∼60°C | |||
| Storage Temperature |
30°C∼70°C |
|||
|
Waterproof rate |
IP68 |
|||
|
Cable |
AWG18 |
|||
| Case Material |
ABS housing |
|||
|
CRI (color rendering index) |
≥70Ra | |||
|
Working hours |
50 000hr |
|||
