*Channel Height : 100mm

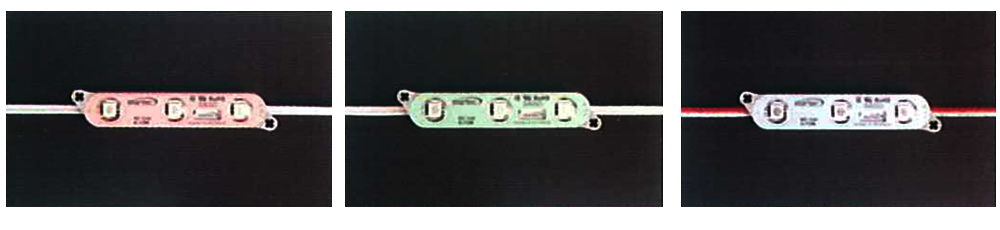

Detail View
• Excellent Waterproof of IP68
• Maintenance 70% of Longtime Life Illumination
• Luxury Apperance by ABS Molding Injection
• Excellent Stability
• Overmolded Design by plastic injection
• Very Easy Installation
Application
Signage, Channel letter, Architecture, Indoor & Outdoor Lighting etc...
Specification
|
Color |
WHITE |
RED |
GREEN |
BLUE |
|
Operating Power |
DC12V |
|||
|
LED Spec |
120° view angle, 50 000hr rated life, made in korea |
|||
|
Luminous intensity (mcd) |
18000 |
6300 |
10800 |
2400 |
|
Luminous Flux (lm/piece) |
45 |
17.8 |
30.5 |
6.8 |
|
Luminous Efficiency (lm/W) |
62.5 |
24.7 |
42.4 |
9.4 |
|
Dominent wavelength |
- |
625 |
625 |
460 |
|
Standard color temperature (K) |
10 000 |
- |
- |
- |
|
Module connection & cuttability |
wire to wire series connection, every module |
|||
|
Recommended channel height |
Min. 80mm |
|||
|
Dimension |
15mm(W)*371mm(L)*18mm(H) |
|||
|
Wire length |
90mm |
|||
|
Piece weight |
8.1g |
|||
| Operating Temperature | 20°C∼60°C | |||
| Storage Temperature |
30°C∼70°C |
|||
|
Waterproof rate |
IP68 |
|||
|
Cable |
AWG18 |
|||
| Case Material |
ABS housing |
|||
|
CRI (color rendering index) |
≥70Ra | |||
|
Working hours |
50 000hr |
|||
